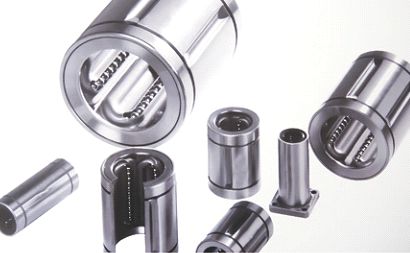

Linear Ball Bearings

Model No	Number of ball rows	Main Dimensions						Besic load rating
Model No	Number of ball rows	dr	D	L	B	D1	W	Dynamie C(kgf)	Static Co(kgf)
LM6UU	4	6	12	19	13.5	11.5	1.1	21	27
LM8SUU	4	8	15	17	11.5	14.3	1.1	18	23
LM8UU	4	8	15	24	17.5	14.3	1.1	27	41
LM10UU	4	10	19	29	22	18	1.3	38	56
LM12UU	4	12	21	30	23	20	1.3	42	61
LM13UU	4	13	23	32	23	22	1.3	52	79
LM16UU	5	16	28	37	26.5	27	1.6	79	120
LM20UU	5	20	32	42	30.5	30.5	1.6	88	140
LM25UU	6	25	40	59	41	38	1.85	100	160
LM30UU	6	30	45	64	44.5	43	1.85	160	280
LM35UU	6	35	52	70	49.5	49	2.1	170	320
LM40UU	6	40	60	80	60.5	57	2.1	220	410
LM50UU	6	50	80	100	74	76.5	2.6	390	810
LM60UU	6	60	90	110	85	86.5	3.15	480	1020
LME8UU	4	8	16	25	16.5	15.2	1.1	27	41
LME10UU	4	10	19	29	22	18	1.3	37	55
LME12UU	4	12	22	32	22.9	21	1.3	52	79
LME16UU	5	16	26	36	24.9	24.9	1.3	59	91
LME20UU	5	20	32	45	31.5	30.3	1.6	88	140
LME25UU	6	25	40	58	44.1	37.5	1.85	100	160
LME30UU	6	30	47	68	52.1	44.5	1.85	160	280
LME40UU	6	40	62	80	60.6	59	2.15	220	400
LME50UU	6	50	75	100	77.6	72	2.65	390	810
LME60UU	6	60	90	125	101.7	86.5	3.15	480	1020
LM6UUAJ	4	6	12	19	13.5	11.5	1.1	21	27
LM8UUAJ	4	8	15	24	17.5	14.3	1.1	27	41
LM10UUAJ	4	10	19	29	22	18	1.3	38	56
LM12UUAJ	4	12	21	30	23	20	1.3	42	61
LM13UUAJ	4	13	23	32	23	22	1.3	52	79
LM16UUAJ	5	16	28	37	26.5	27	1.6	79	120
LM20UUAJ	5	20	32	42	30.5	30.5	1.6	88	140
LM25UUAJ	6	25	40	59	41	38	1.85	100	160
LM30UUAJ	6	30	45	64	44.5	43	1.85	160	280
LM35UUAJ	6	35	52	70	49.5	49	2.1	170	320
LM40UUAJ	6	40	60	80	60.5	57	2.1	220	410
LM50UUAJ	6	50	80	100	74	76.5	2.6	390	810
LM60UUAJ	6	60	90	110	85	86.5	3.15	480	1020
LME8UUAJ	4	8	16	25	16.5	15.2	1.1	27	41
LME10UUAJ	4	10	19	59	22	18	1.3	37	55
LME12UUAJ	4	12	22	32	22.9	21	1.3	52	79
LME16UUAJ	5	16	26	36	24.9	24.9	1.3	59	91
LME20UUAJ	5	20	32	45	31.5	30.3	1.6	88	140
LME25UUAJ	6	25	40	58	44.1	37.5	1.85	100	160
LME30UUAJ	6	30	47	68	52.1	44.5	1.85	160	280
LME40UUAJ	6	40	62	80	60.6	59	2.15	220	400
LME50UUAJ	6	50	75	100	77.6	72	2.65	390	810
LME60UUAJ	6	60	90	125	101.7	86.5	3.15	480	1020
LM16UUOP	4	16	28	37	26.5	27	1.6	79	120
LM20UUOP	4	20	32	42	30.5	30.5	1.6	88	140
LM25UUOP	5	25	40	59	41	38	1.85	100	160
LM30UUOP	5	30	45	64	44.5	43	1.85	160	280
LM40UUOP	5	40	60	80	60.5	57	2.1	220	410
LM50UUOP	5	50	80	100	74	76.5	2.6	390	810
LM60UUOP	5	60	90	110	85	86.5	3.15	480	1020
LME12UUOP	3	12	22	32	22.9	21	1.3	52	79
LME16UUOP	4	16	26	36	24.9	24.9	1.3	59	91
LME20UUOP	4	20	32	45	31.5	30.3	1.6	58	140
LME25UUOP	5	25	40	58	44.1	37.5	1.85	100	160
LME30UUOP	5	30	47	68	52.1	44.5	1.85	160	280
LME40UUOP	5	40	62	80	60.6	59	2.65	220	400
LME50UUOP	5	50	75	100	77.6	72	2.65	390	810
LME60UUOP	5	60	90	125	101.7	86.5	3.15	480	1020

Model No.	Dimension(mm)			Besic load rating		Proper bearing block	A set of bearing unit
Model No.	d	D	B	Dynamie C(kgf)	Static Co(kgf)	Proper bearing block	A set of bearing unit
KH0824	8	15	24	20	31	GH08	KGH08
KH1026	10	17	26	27	36	GH10	KGH10
KH1228	12	19	28	37	46	GH12	KGH12
KH1428	14	21	28	38	48	GH14	KGH14
KH1630	16	24	30	46	59	GH16	KGH16
KH2030	20	28	30	58	71	GH20	KGH20
KH2540	25	35	40	124	142	GH25	KGH25
KH3050	30	40	50	200	211	GH30	KGH30
KH4060	40	52	60	220	334	GH40	KGH40
KH5070	50	62	70	420	430	GH50	KGH50
